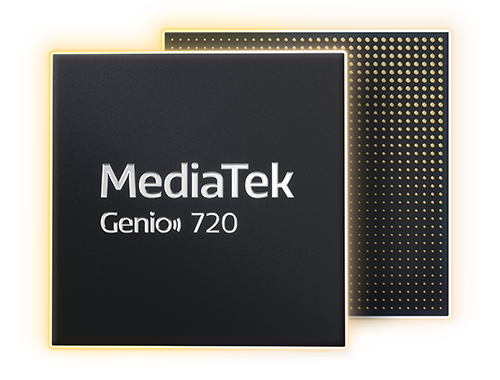

MediaTek Genio G720 (MT8391)
High-End power-efficient IOT platform for edge GenAI applications
Overview
The MediaTek Genio 720 offers unparalleled capabilities for embedded edge AI and GenAI applications, building on MediaTek’s strong AI technologies and rich IOT platform portfolio. Built on an advanced 6nm process technology the Genio 720 integrates an 8th generation MediaTek NPU, that delivers up to 10 TOPS of acceleration for handling complex AI tasks like object detection, image classification, and speech recognition as well as on-device support for GenAI applications & leading LLMs (Large Language Models). This enables real-time, low-latency AI inference on the edge, reducing reliance on cloud-based processing.
The Genio 720 also includes an octa-core processor with 2x Arm Cortex-A78 cores running at up to 2.6 GHz and 6x Arm Cortex-A55, and an Arm Mali G57 MC2 GPU. It supports up to Ultrawide 5K60 single-display, dual 2.5K60 displays, and dual-camera ISPs making it a strong fit for smart retail, smart home, transportation/smart cities, healthcare, entertainment, education, industrial and enterprise applications.
Integrated Wi-Fi 6E and Bluetooth 5.3 support, as well as expansion options for Wi-Fi 7, 5G and RedCap connectivity provide a platform for rich connected applications.
The Genio 720 supports an OSM (Open Standard Module) reference design and is pin-to-pin and software compatible with the mainstream Genio 520, allowing for a scalable platform. With support for Android, IoT Yocto, and Ubuntu, it provides a stable foundation for long-lifecycle IoT deployments.
The development resources for Genio 720, including EVK, documentation, tools, and design resources, are scheduled to be available by the end of June.
-
.svg?language=en)
Power-Efficient Edge GenAI Platform
2x Arm Cortex-A78 + 6x Arm Cortex-A55 deliver high performance and power efficiency, built on TSMC 6nm process
-
.svg?language=en)
Advanced GenAI and Neural Processing
8th generation MediaTek NPU with 10 TOPS acceleration, enabling real-time AI, GenAI applications with leading LLMs
-
.svg?language=en)
Advanced Multimedia and Graphics
Arm Mali-G57 MC2 GPU and advanced multimedia pipelines support up to Ultrawide 5K display and 4K video codecs

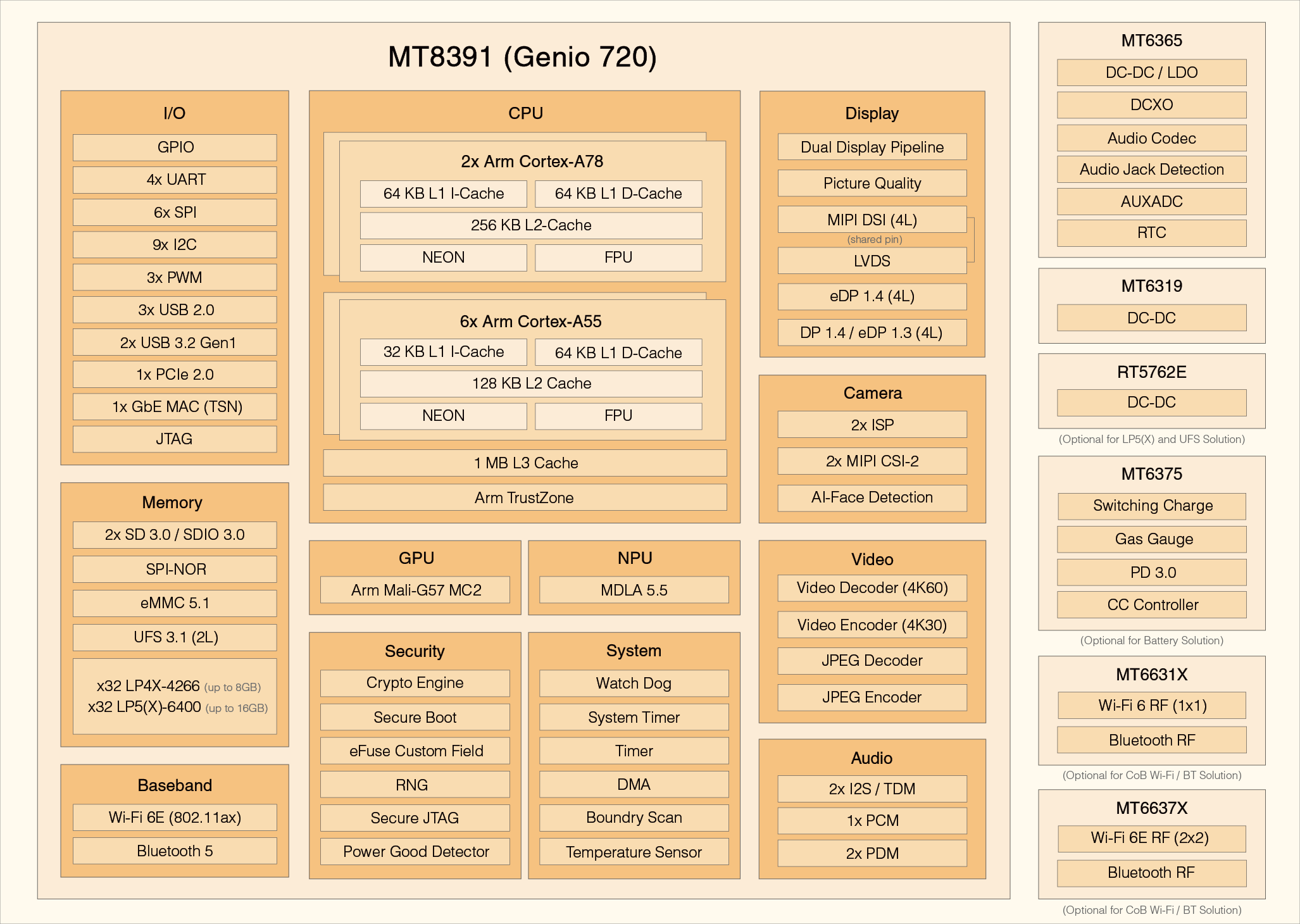

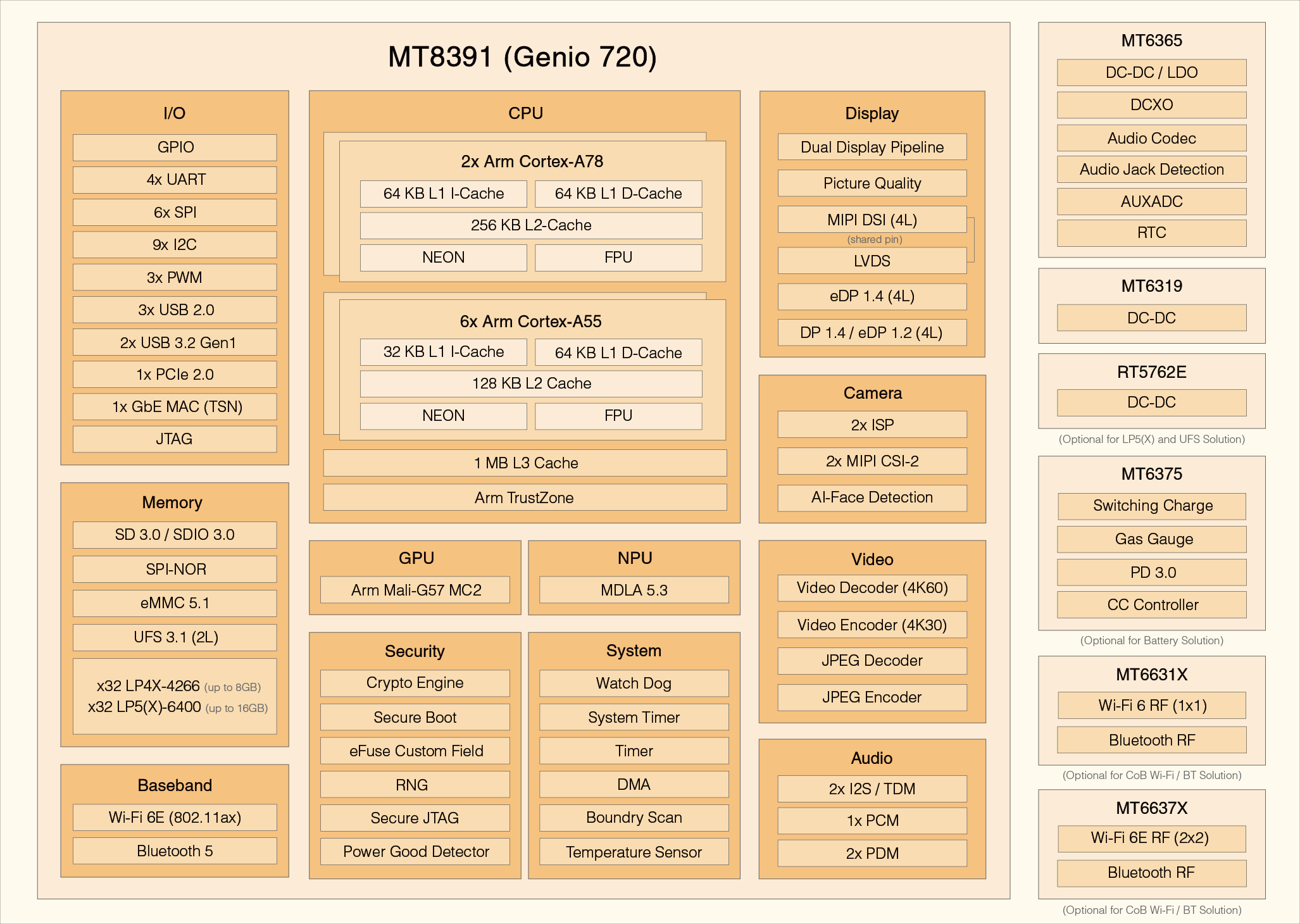

Block Diagram Expand PNG SVG
The block diagram provides a comprehensive overview of the functional blocks and interfaces of Genio 720, as well as the companion chipset that complements this SoC.
-Block-Diagram_250512-(for-web).png?language=en "Genio 720 Block Diagram")
Specifications
-
Process node6nm
-
Processor (CPU)2x Arm Cortex-A78 2.4~2.6GHz
6x Arm Cortex-A55 2.0GHz -
Graphics Processor (GPU)Arm Mali-G57 MC2 1.1GHz
OpenGL ES 3.2, Vulkan 1.1, OpenCL 2.2 -
Neural Processing Unit (NPU)8th-Gen NPU 9 TOPS (1x MDLA5.5, GenAI)
-
Memory and Typex32 LP4X-4266 (up to 8GB)
x32 LP5(X)-6400 (up to 16GB) -
Storage TypeeMMC5.1
UFS3.1 (2L)
2x SD 3.0
SPI-NOR -
Input/Output2x USB 2.0 (Host)
1x USB 2.0 (Host/Device)
2x USB 3.2 Gen1 (Host, 1 shared with DP)
1x GbE MAC (TSN)
1x PCIe 2.0 (1L, RC)
4x UART
9x I2C
6x SPI Master
3x PWM -
TemperatureConsumer: -20°C to 95°C (Tj)
Industrial: -40°C to 105°C (Tj) -
Package TypeVFBGA
-
Package Dimension13.8 x 11.8 mm x 0.9, 0.4 mm ball pitch
-
Display Interface1x MIPI-DSI (4L, 2.5Gbps/L) / LVDS
1x eDP1.4 (4L)
1x DP1.4/eDP1.3 (4L) (Type-C) -
Display ControllerDual Display, Max. 2.5K60+2.5K60
Single Display, Max. UW5K60 or 4K60
(Support PQ/HDR10/HDR10+/HLG/CUVA) -
Video-in Interface2x MIPI-CSI (4L)
(Virtual channel: Up to 1x 4K60 or 6x FHD30) -
Image Signal Processor2x ISP (3A, NR, AI-FD, LSC, Warp Engine)
Single camera: 32MP @ 30fps
Dual camera: 16MP + 16MP @ 30fps -
Video DecodeH.264/H.265/VP9 (4K60)
-
Video EncodeH.264/H.265 (4K30)
-
JPEG Decode250 MP/s
-
JPEG Encode250 MP/s
-
Audio2x I2S/TDM input
2x I2S/TDM output
2x PDM input
1x PCM input/output -
Integrated Wi-Fi BasebandWiFi-6 1x1/Bluetooth 5.3 (MT6631X),
WiFi-6E 2x2/Bluetooth 5.3 (MT6637X) -
SecurityARM TrustZone
Security Boot (RSA4096)
Crypto Engine
RNG
Applications
The Genio 720 SoC is built to support an extensive range of IoT applications, ensuring high levels of security, dependable stability, robust performance, and versatile flexibility to address the needs of different use cases.
-
Smart Home
Smart Appliances
Smart Fitness
Personal Assistant
Energy Management -
Industrial
Automation
HMI
Gateways
Predictive Maintenance
Vision Inspection -
Smart Retail
POS
AIDC
Inventory Management
Self Checkout
Smart Shelf -
Enterprise
Video Conferencing
Digital Signage
Smart Display
Access Control -
Healthcare
Patient Monitoring
Remote Healthcare
Medical Imaging -
Entertainment
Gaming
Controller
Video Streaming
Media Player -
Education
Interactive Whiteboard
Classroom Analytics
Digital Learning -
Smart Cities
Smart Lighting
Smart Surveillance
Smart Parking
EV Charging
Environmental Monitoring
Operating Systems
The Genio 720 SoC supports multiple operating systems to meet the diverse needs of different application scenarios, software maintenance policies, customization flexibility, and memory footprint constraints, accommodating various levels of system complexity, user interfaces, and development environments.
Evaluation Kits
The Genio 720-EVK (Evaluation Kit) is a fully functional hardware platform designed to comprehensively validate all features of the SoC. Pre-built images of various operating systems are provided for thorough evaluation. The Evaluation Kit facilitates rapid prototyping, accelerates development cycles, and enables performance benchmarking, making it an essential tool for developers to optimize their applications and validate their hardware designs.
| Product | Features | Purchase |
|---|---|---|
|
Product
|
Features
|
Purchase
|
FAQ
What is the longevity and supply plan for Genio 720?
MediaTek provides long-term availability for Genio 720 to meet industrial and embedded application requirements. The typical product lifecycle is 10 years from initial release, with End-of-Life (EOL) notice provided at least 12 months in advance. For current lifecycle details, customers should contact MediaTek or authorized distributors.
Which operating systems are supported by Genio 720?
Genio 720 is officially supported with Android at launch. Support for Yocto and Ubuntu is included in the product release roadmap.
What is the AI performance of Genio 720?
The total system AI performance is 10 TOPS, with 9 TOPS provided by the NPU.
Does Genio 720 pin-to-pin compatible with Genio 520?
Yes. Genio 720 is fully pin-to-pin compatible with Genio 520, enabling easy upgrades or migration between the two platforms.
Does Genio 720 pin-to-pin compatible with Genio 700?
No. Genio 720 is not pin-to-pin compatible with Genio 700.
What is the major difference between Genio 720 and Genio 520?
The major differences are primarily in CPU frequency and ISP:
- CPU
- Genio 720: 2x Cortex-A78 @2.6GHz + 6x Cortex-A55 @2.0GHz
- Genio 520: 2x Cortex-A78 @2.2GHz + 6x Cortex-A55 @2.0GHz
- ISP
- Genio 720: 2x ISP
- Genio 520: 1x ISP
What is the major upgrade from Genio 700 to Genio 720?
Genio 720 (Genio 2 Series) delivers the following upgrades over Genio 700:
- Arm Cortex-A78 CPU frequency upgrade from 2.2GHh to 2.6Ghz, providing in single/multi-core performance improvement
- Major NPU performance and architecture enhancement: from 4.0 TOPS (Genio 700) to 10 TOPS (Genio 720), with GenAI capabilities
- Memory and storage upgraded from LPDDR4/eMMC (Genio 700) to LPDDR5/UFS 3.1 (Genio 720)
- Single display support upgraded from 4K60 to ultrawide 5K60 (5120x2160)
- Optimized for low-power consumption to support mobile IoT applications
- Expanded USB 2.0/3.0 interfaces, all supporting 64 endpoints
- Integrated Wi-Fi 6 (1x1) and Wi-Fi 6E (2x2) options for improved BOM structure
- OSM-ready reference design for streamlined development
Does Genio 720 support industrial temperature operation?
Yes. Genio 720 supports both consumer and industrial temperature grades.
- Consumer temperature: -20°C to 95°C (Tj)
- Industrial temperature: -40°C to 105°C (Tj)
Does Genio 720 support RSA3072 secure boot?
Yes. Genio 720 Boot ROM (Root of Trust) supports up to the RSA4096 algorithm. Android currently supports the RSA2048 secure boot, while Yocto, Ubuntu, and AOSP will support the RSA3072 secure boot.
