Evaluation Kits

The Genio Evaluation Kit fully showcases the hardware and software capabilities of the MediaTek Genio platforms, also serving as a detailed reference design. This EVK supports various operating systems, making it the ideal platform for early-stage evaluation and development.

Product	Features	Purchase

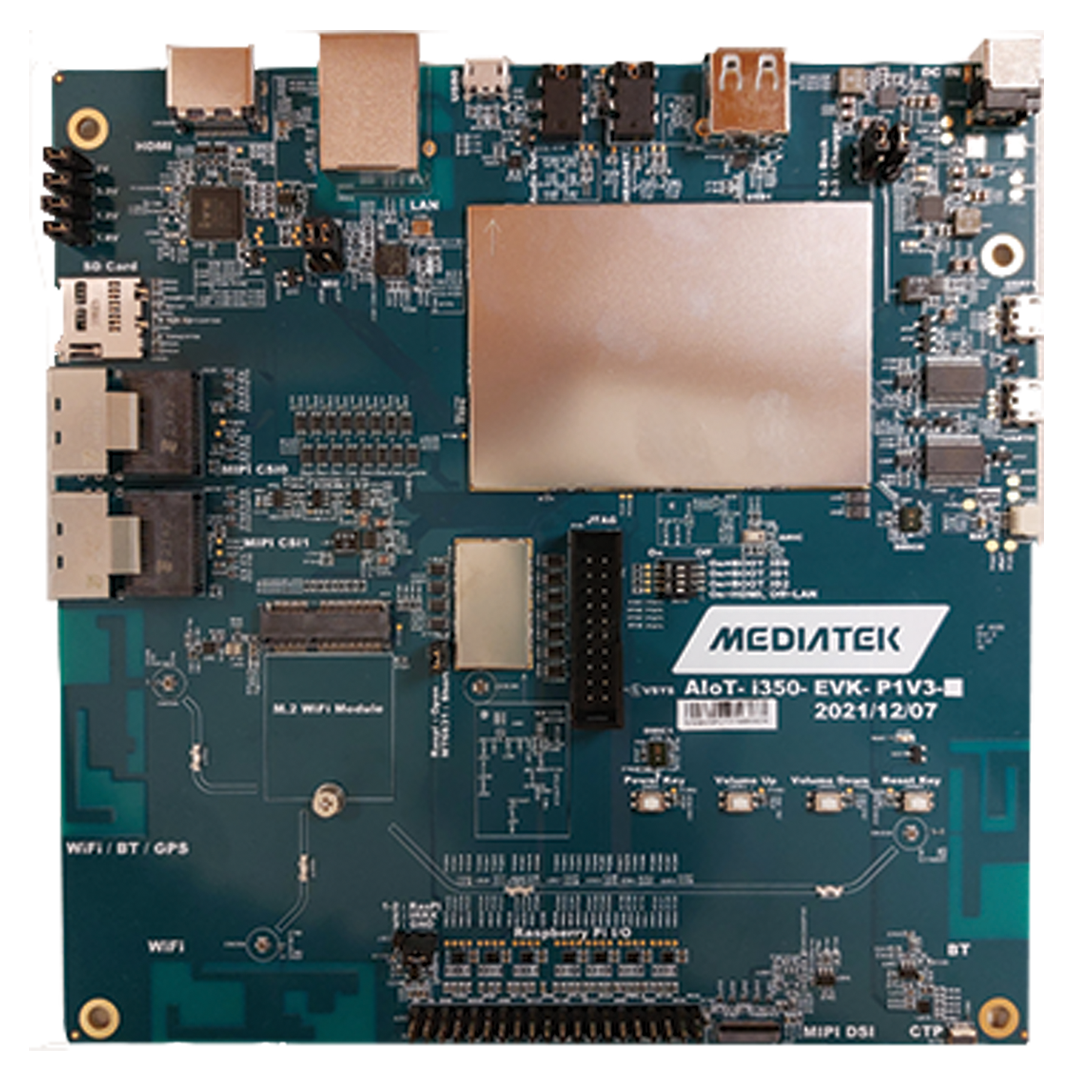

Product Genio 350-EVK User Guide	Features 3GB of LPDDR4x 64GB eMMC onboard Wi-Fi 5 (2x2) wireless connectivity 2x MIPI CSI connectors with 1.3MP cameras 2x USB 2.0 ports 1x Micro SD card slot 1x HDMI Tx port 1x RJ45 Fast Ethernet 40-pin GPIO	Purchase Digikey (Global) Mouser (Global) Rutronik (Global) Symmetry (Global) Arrow (TW, CN) SAC (TW, CN) Synnex (TW, CN) WT (Global)

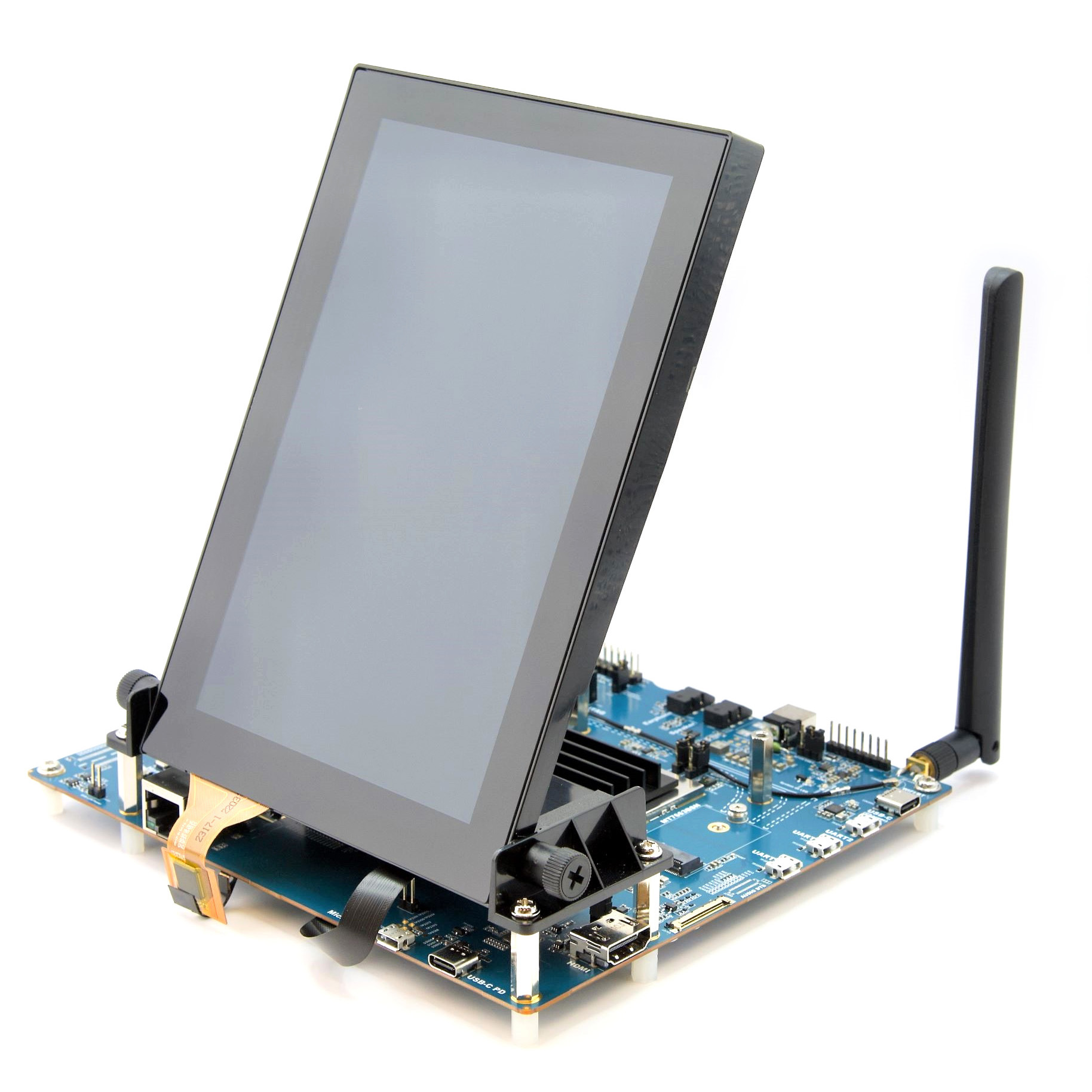

Product Genio 510-EVK User Guide	Features 4GB of LPDDR4x 64GB eMMC onboard Wi-Fi 6 (2x2) + BT5.2 wireless connectivity 2x MIPI CSI connectors with 13MP and 8MP cameras 2x USB 2.0 ports 1x Micro SD card slot 1x HDMI Tx port 1x 10/100/1000M Ethernet RJ45 connector 40-pin GPIO A 7-inch Full HD LCM touch panel	Purchase Digikey (Global) Mouser (Global) Rutronik (Global) Symmetry (Global) Arrow (TW, CN) SAC (TW, CN) Synnex (TW, CN) WT (Global)
Product Genio 520-EVK User Guide	Features 8GB of LPDDR5 UFS 3.1 128GB and eMMC 5.1 64GB onboard Wi-Fi 6 (2x2) + BT5.2 wireless connectivity 2x MIPI CSI camera board with camera modules 1x USB 3.2 port support DP (Type-C connector) 1x USB 3.2 port (Type-C connector) 1x USB 2.0 port (Type-C connector) 1x Micro SD card connector 1x eDP connector 1x LVDS connector 7 inch TFT-LCD contains 1200x1920 pixels with touch panel 1x 10/100/1000M Ethernet RJ45 connector 40-Pin Raspberry Pi pin header CAN-FD with D-Sub 9 pin connector 2x 2-wire UART connector (Type-C connector) 2x 4-wire UART pin header 1x M.2 Key B slot (PCIe interface) 1x M.2 Key E slot (PCIe interface) 1x M.2 Key E slot (SDIO interface)	Purchase AMobile (Global) Mouser (Global) RUTRONIK (Global) Symmetry (Global) Arrow (TW, CN) SAC (TW, CN) Synnex (TW, CN) WT (Global)
Product Genio 700-EVK User Guide	Features 8GB of LPDDR4x 64GB eMMC onboard Wi-Fi 6 (2x2) wireless connectivity 2x MIPI CSI connectors with 13MP and 8MP cameras 2x USB 2.0 ports 1x Micro SD card slot 1x HDMI Tx port 1x RJ45 Fast Ethernet 40-pin GPIO A 7-inch Full HD LCM touch panel	Purchase Digikey (Global) Mouser (Global) Rutronik (Global) Symmetry (Global) Arrow (TW, CN) SAC (TW, CN) Synnex (TW, CN) WT (Global)
Product Genio 720-EVK User Guide	Features 8GB of LPDDR5 UFS 3.1 128GB and eMMC 5.1 64GB onboard Wi-Fi 6 (2x2) + BT5.2 wireless connectivity 2x MIPI CSI camera board with camera modules 1x USB 3.2 port support DP (Type-C connector) 1x USB 3.2 port (Type-C connector) 1x USB 2.0 port (Type-C connector) 1x Micro SD card connector 1x eDP connector 1x LVDS connector 7 inch TFT-LCD contains 1200x1920 pixels with touch panel 1x 10/100/1000M Ethernet RJ45 connector 40-Pin Raspberry Pi pin header CAN-FD with D-Sub 9 pin connector 2x 2-wire UART connector (Type-C connector) 2x 4-wire UART pin header 1x M.2 Key B slot (PCIe interface) 1x M.2 Key E slot (PCIe interface) 1x M.2 Key E slot (SDIO interface)	Purchase AMobile (Global) Mouser (Global) RUTRONIK (Global) Arrow (TW, CN) SAC (TW, CN) Synnex (TW, CN) WT (Global)

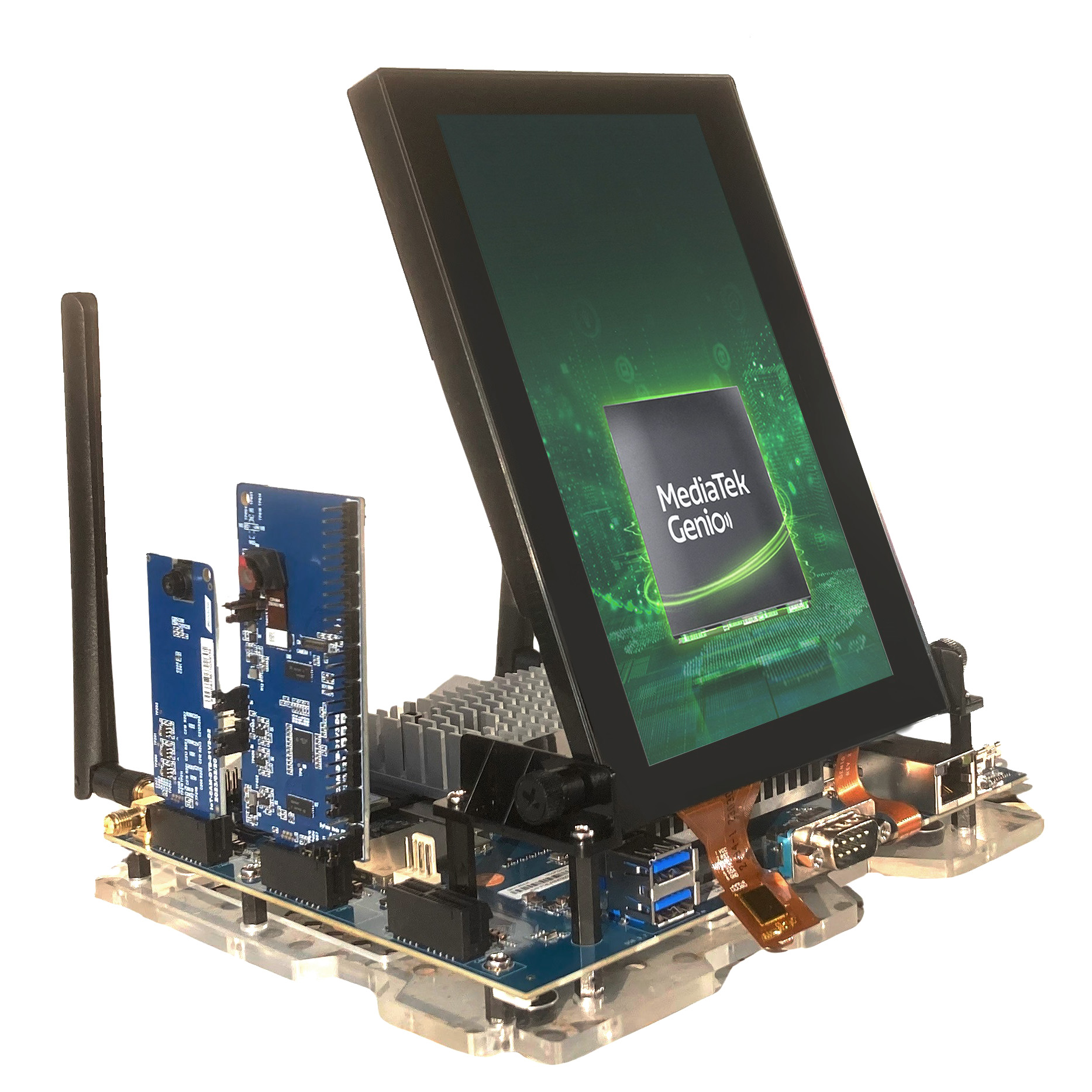

Product Genio 1200-EVK User Guide	Features 8GB of LPDDR4X-4266 64GB eMMC5.1 onboard and UFS 2.1 interface Wi-Fi 6 (2x2) + BT5.2 wireless connectivity 2x MIPI CSI camera board with camera modules 1x USB Type-C port (USB 3.2/DP MUX) 2x USB 3.2 ports, 1x Micro USB OTG 1x Micro SD card connector 2x HDMI port (IN x1, OUT x1) 1x 10/100/1000M Ethernet RJ-45 connector A 7-inch MIPI DSI with a touch panel 40-pin GPIO	Purchase Digikey (Global) Mouser (Global) Rutronik (Global) Symmetry (Global) Arrow (TW, CN) SAC (TW, CN) Synnex (TW, CN) WT (Global)
