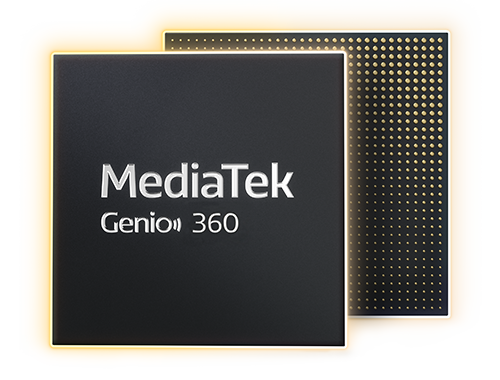

MediaTek Genio 360 (MT8366)
GenAI capable, Hexa-core, value-tier IoT platform
Overview
The MediaTek Genio 360 is an advanced, 6nm, value-tier IoT platform that brings more premium-tier features to the entry segment for the first time. It features an advanced hexa-core CPU configuration consisting of a single Cortex-A76 Big-CPU at up to 2.0GHz and 5-core Cortex-A55 configuration also capable of up to 2.0GHz.
For the first time, the Genio 360 enables GenAI capabilities at the edge for value-tier devices, with an on-chip 8th generation MediaTek NPU capable of 5.1 TOPS, with a total system performance of over 6 TOPS. The Genio 360 platform also enables a rich multimedia experience including support for single 4K60 display or dual displays at FHD60 resolution, a single 16MP camera at 30fps or up to 6xFHD30 cameras using MIPI virtual channels and 4K30 video decode.
With a rich I/O capability including PCIe Gen2, USB 3.2 Gen1, dual USB 2.0 and GbE MAC (TSN) interfaces available, a wide variety of system expansion is possible. The Genio 360 comes pre-integrated with Wi-Fi 5 capability for the lowest system cost but allows for more advanced Wi-Fi options with external solutions.
Genio 360 supports Android, IoT Yocto, and Ubuntu OS allowing for a wide range of consumer, industrial and enterprise applications. Guaranteed longevity of supply for 10 years and both commercial & industrial temperature ranges round out the support for intelligent embedded solutions.
Alongside the Genio 360, the pin-compatible Genio 360P features 2x Arm Cortex-A76 and 6x Arm Cortex-A55 cores with higher NPU performance.
-
.svg?language=en "High-Performance Computing Power")
High-Performance Computing Power
Single Cortex-A76 offers gains for single core performance with 5xCortex-A55 and 6nm technology ensuring low-power consumption for less demanding tasks
-
.svg?language=en "Enables GenAI On-Device Acceleration")
Enables GenAI On-Device Acceleration
Integrated 8th generation MediaTek NPU delivers 5.1 TOPS to allow a wide range of edge AI and GenAI application in the value tier
-
.svg?language=en "Rich I/O Expansion Capability")
Rich I/O Expansion Capability
PCIe Gen 2, multiple USB interfaces and GbE MAC integration allow for extensive system and I/O expansio

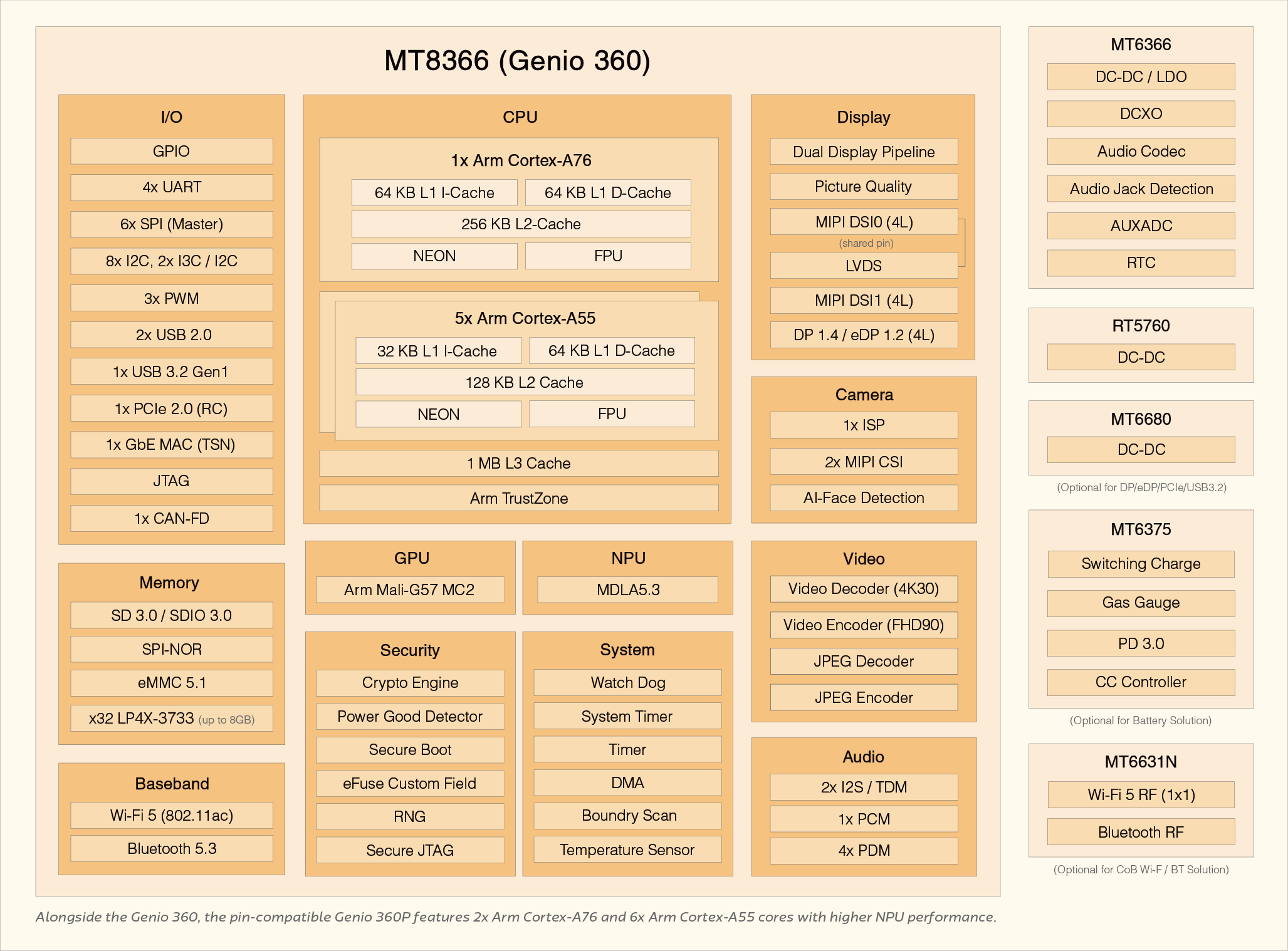

Block Diagram Expand PNG SVG
The block diagram provides a comprehensive overview of the functional blocks and interfaces of Genio 360, as well as the companion chipset that complements this SoC.
-Genio-360P(MT8367)-Block-Diagram_260102-(for-web).png?language=en "Block Diagram_Genio 360 (PNG)")
Specifications
-
Process node
6nm -
Processor (CPU)
[Genio 360] Consumer
1x Arm Cortex-A76 (2.0GHz)
5x Arm Cortex-A55 (2.0GHz)
[Genio 360] Industrial
1x Arm Cortex-A76 (1.9GHz)
5x Arm Cortex-A55 (1.7GHz)
[Genio 360P] Consumer
2x Arm Cortex-A76 (2.0GHz)
6x Arm Cortex-A55 (2.0GHz)
[Genio 360P] Industrial
2x Arm Cortex-A76 (1.9GHz)
6x Arm Cortex-A55 (1.7GHz) -
Graphics Processor (GPU)
Arm Mali-G57 MC2 (700MHz)
OpenGL ES 3.2, Vulkan 1.1, OpenCL 2.0 -
Neural Processing Unit (NPU)
MediaTek 8th-Gen NPU
(1x MDLA5.3, GenAI)
[Genio 360] 5.1 TOPS
[Genio 360P] 7.4 TOPS -
Memory and Type
x32 LP4X-3733 (up to 8GB) -
Storage Type
eMMC5.1
SD 3.0
SPI-NOR -
Input/Output
2x USB 2.0 (Host)
1x USB 3.2 Gen1 (Host)
1x GbE MAC (TSN)
1x PCIe 2.0 (1L, RC, WoWLan)
4x UART
8x I2C, 2x I2C / I3C
6x SPI Master
3x PWM
1x CAN-FD -
Temperature
Consumer: -20°C to 95°C (Tj)
Industrial: -40°C to 105°C (Tj) -
Package Type
VFBGA -
Package Dimension
12.2 x 13.4 x 0.9 mm, 0.4 mm ball pitch
(pin-to-pin compatible) -
Display Interface
1x MIPI-DSI (4L, 2.5Gbps/L) / LVDS
1x MIPI-DSI (4L, 2.5Gbps/L)
1x DP1.4/eDP1.2 (4L) -
Display Controller
Dual Display, Max. FHD60+FHD60
Single Display, Max. 4K60
(Support PQ) -
Video-in Interface
2x MIPI-CSI (4L)
(Virtual channel: 6x FHD30) -
Image Signal Processor
1x ISP (3A, NR, AI-FD, LSC)
Single camera: 16MP @ 30fps -
Video Decode
H.264/H.265/VP9 (4K30) -
Video Encode
H.264/H.265 (FHD90) -
JPEG Decode
250 MP/s -
JPEG Encode
400 MP/s -
Audio
2x I2S/TDM input
2x I2S/TDM output
4x PDM input
1x PCM input/output -
Integrated Wi-Fi Baseband
WiFi-5 1x1/Bluetooth 5.3 (MT6631) -
Security
ARM TrustZone
Security Boot (RSA4096)
Crypto Engine
RNG
Applications
The Genio 360 SoC is built to support an extensive range of IoT applications, ensuring high levels of security, dependable stability, robust performance, and versatile flexibility to address the needs of different use cases.
-
Smart Home
Smart Appliances
Smart Fitness
Personal Assistant
Energy Management -
Industrial
Automation
HMI
Gateways
Predictive Maintenance
Vision Inspection -
Smart Retail
POS
AIDC
Inventory Management
Self Checkout
Smart Shelf -
Enterprise
Video Conferencing
Digital Signage
Smart Display
Access Control -
Healthcare
Patient Monitoring
Remote Healthcare
Medical Imaging -
Entertainment
Gaming
Controller
Video Streaming
Media Player -
Education
Interactive Whiteboard
Classroom Analytics
Digital Learning -
Smart Cities
Smart Lighting
Smart Surveillance
Smart Parking
EV Charging
Environmental Monitoring
Operating Systems
The Genio 360 SoC supports multiple operating systems to meet the diverse needs of different application scenarios, software maintenance policies, customization flexibility, and memory footprint constraints, accommodating various levels of system complexity, user interfaces, and development environments.
Evaluation Kits
The Genio 360-EVK (Evaluation Kit) is a fully functional hardware platform designed to comprehensively validate all features of the SoC. Pre-built images of various operating systems are provided for thorough evaluation. The Evaluation Kit facilitates rapid prototyping, accelerates development cycles, and enables performance benchmarking, making it an essential tool for developers to optimize their applications and validate their hardware designs.
| Product | Features | Purchase |
|---|---|---|
|
Product
|
Features
|
Purchase
|
FAQ
What is the longevity and supply plan for Genio 360?
MediaTek provides long-term availability for Genio 360 to meet industrial and embedded application requirements. The typical product lifecycle is 10 years from initial release and is planned to extend through 2035, with End-of-Life (EOL) notice provided at least 12 months in advance.
Which operating systems are supported by Genio 360?
Genio 360 is officially supported with Android from MediaTek, which is available now. Support for Yocto is scheduled for 2026 Q3, and Ubuntu is scheduled for 2026 Q4. Please note that there is currently no plan to support AOSP on this platform.
How is Genio 360 positioned relative to Genio 350?
Genio 360 is the next-generation value-tier platform succeeding Genio 350. It upgrades the manufacturing process from 14nm to 6nm for better power efficiency and introduces "Big Core" (Cortex-A76) performance to the value tier. It also features significant enhancements in NPU performance (GenAI capable), display capabilities (up to 4K60), and richer I/O interfaces compared to Genio 350.
What performance improvements does Genio 360 offer compared to Genio 350?
Genio 360 delivers up to 3x higher CPU single-core performance and up to 2x higher CPU multi-core performance versus Genio 350. For graphics, Genio 360 provides up to 2x higher GPU performance versus Genio 350.
What is the difference between Genio 360 and Genio 360P?
The Genio 360 family consists of two variants to suit different performance needs.
- Genio 360 (MT8366): The mainstream option, featuring a hexa-core CPU (1x Cortex-A76 + 5x Cortex-A55) and an NPU with 5.1 TOPS.
- Genio 360P (MT8367): A higher-performance variant featuring an octa-core CPU (2x Cortex-A76 + 6x Cortex-A55) and an NPU with 7.4 TOPS.
Both share the same pinout and general feature set, but the 360P offers additional computing headroom for demanding applications.
Does Genio 360 support LPDDR5 memory?
No. Genio 360 supports 32-bit LPDDR4X memory. It does not support LPDDR5(X).
Does Genio 360 support CAN-bus interfaces?
Yes. Genio 360 includes native support for CAN-FD, which is commonly used in industrial control, robotics, in-vehicle, and factory automation use cases.
What is the AI performance of Genio 360?
Genio 360 integrates an 8th generation MediaTek NPU. The standard Genio 360 delivers 5.1 TOPS, while the Genio 360P delivers 7.4 TOPS. This allows for effective on-device edge AI and basic GenAI (<2B models) acceleration in value-tier devices.
Does Genio 360 support industrial temperature operation?
Yes. Genio 360 is available in both consumer and industrial temperature grades.
- Consumer temperature: -20°C to 95°C (Tj)
- Industrial temperature: -40°C to 105°C (Tj)
What are the display capabilities of Genio 360?
Genio 360 supports dual displays. It can drive a single display up to 4K@60Hz (via eDP or DP) or dual displays at FHD@60Hz + FHD@60Hz. This is a significant upgrade from the FHD limits of Genio 350.
Is Genio 360 pin-compatible with Genio 350?
No. Genio 360 uses a different package size (12.2 x 13.4 mm) compared to Genio 350 (12.2 x 11.8 mm) and is not pin-to-pin compatible. It requires a new board design.
Does Genio 360 have integrated Wi-Fi/Bluetooth?
Yes. Genio 360 has an integrated wireless baseband that supports Wi-Fi 5 (1x1) and Bluetooth 5.3 when paired with the MT6631 companion RF chip. This provides a cost-effective connectivity solution, though external modules can be used via PCIe or USB for higher performance requirements (e.g., Wi-Fi 6).
Does Genio 360 support RSA3072 and RSA4096 secure boot?
Yes. The Genio 360 Boot ROM (Root of Trust) supports both RSA3072 and RSA4096 for secure boot. Please confirm the support status with your specific OS version.
Are all hardware features of Genio 360 supported under every OS?
No. The level of hardware feature support depends on the specific operating system (Android, Yocto, Ubuntu), software stack, and frameworks in use. Since Yocto and Ubuntu support are scheduled for later in 2026, please refer to the specific release notes for feature availability at that time.
